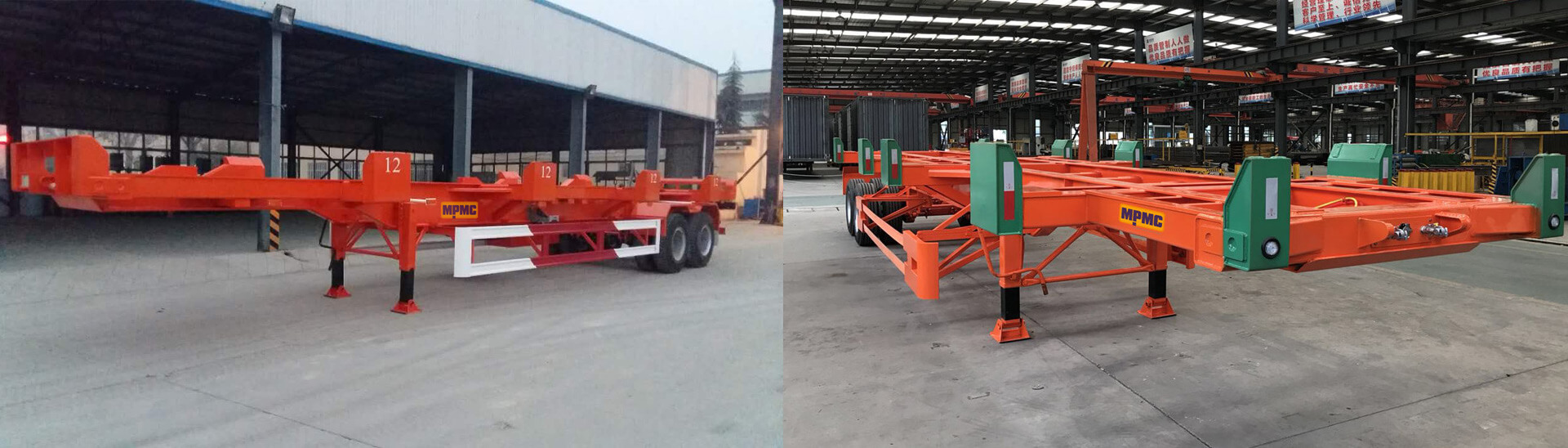

Teminal Trailer
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.
Introduction
Terminal Trailer is specially designed for shuttling between shore crane and container stacking with special feature of easy container loading and maximizing the productivity of terminal operation and proper protection to containers

Technical Information


Chassis

High tensile steel with 350Mpa yield strength. Main beams are welded automatically by submerged welding machine


Kingpin

2’’ or 3,5’’ king pin, SAE standard, bolted on or welding on type.


Brake system

Duel line brake system. WABCO, SEALCO or equivalent brand.


Electric system

24 Volt lighting system with 7 pin socket, SAE standard.


Landing gear

Telescopic type, 2 speeds, manual operation. JOST or equivalent brand.


Tyres

Pneumatic tyres 12 R22.5 or Solid tyres 10.00-20.


Axle and suspension

13T load capacity, 150 x 150 square axle, leaf spring. BPW, FUWA, JMCG or equivalent brand

Enhanced Features Options
- Other dimensions or payloads available.
- Fixed or adjustable landing legs
- Soft side fender made of spring tensioned nylon belt
- Hubodometer.
- Plastic tyre block 2 pcs.

Type

Payload (kgs)

Tare Weight (kgs)

Length (mm)

Width (mm)

Height (mm)

40 FT Terminal Trailer

60000

8500

13000

2820

1710

45 FT Terminal Trailer

65000

8500

14130

2820

1710


Above data can be adjusted per customer requirement.
