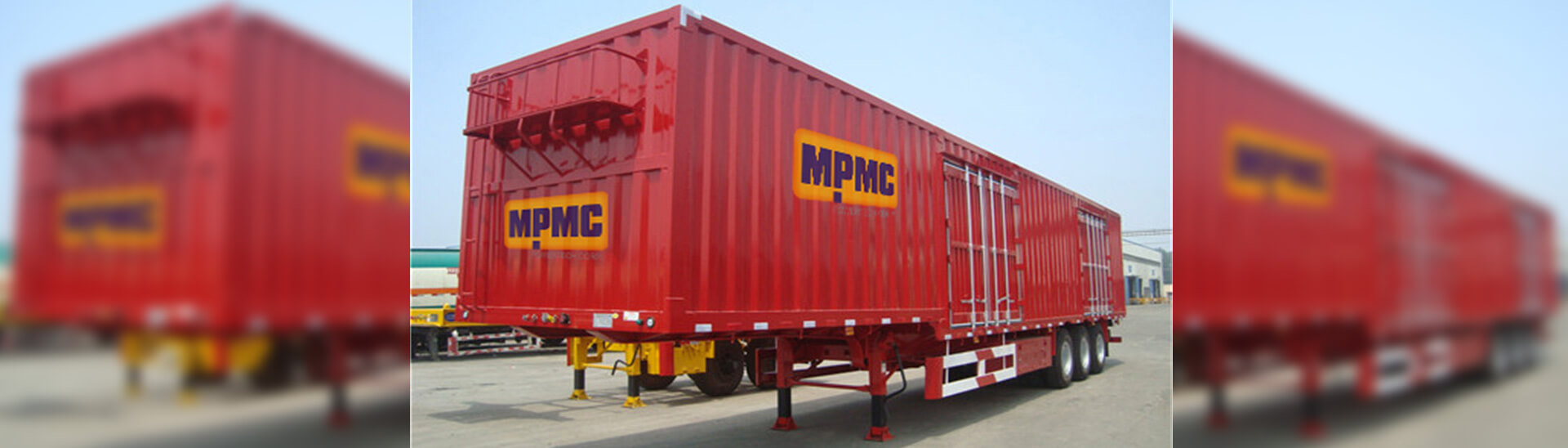

3-Axles Van Box
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.

Technical Information
Chassis
Star Trailer chassis made of Q345 steel. Strengthened “I” section main beams are welded automatically by submerged welding machine.
Kingpin
2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type
Brake system
Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber.
WABCO, SEALCO or equivalent brand.
Enhanced Features Options
- Lightweight design with Q700 steel "I" beam.
- Other dimensions available.
- Aluminum Tool box, Bumper, Side guard, Air tank, Wheel Rim.
- Air Suspension
- 1st axle lifting.
- Lashing rings and ripe hooks equipped for securing cargo
- Hubodometer.
- Plastic tyre blocks 2 pcs.


Electric system
24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand.
Landing gear
Single side operation, 2 speeds, telescopic type.
JOST, Holland or equivalent brand.
Tyres
12 R22.5 or 385/65 R22.5 or 315/80 R22.5.
Triangle, Bridgestone, Goodyear, Continental.
Axle and suspension
13T load capacity, 150 x 150 square axle.
BPW, FUWA, JMCG.
Mechanical suspension or air suspension
Accessories
2pcs Spare wheel carries
1 pc tool box
Reflector


Parameters

ST0S03

Payload(kg)

40000

Tare weight(kg)

9000

G.V.W.R(kg)

49000

Length(mm)

13000

Width(mm)

2500

Height(mm)

1300

Side wall height(mm)

3500
