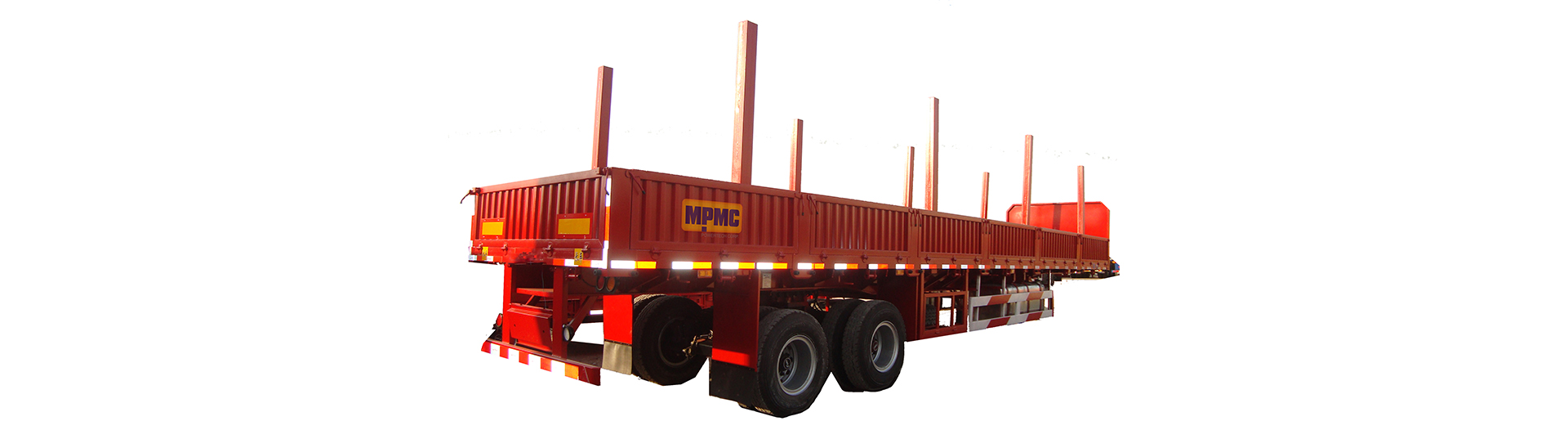

2-Axles
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.

Technical Information
Chassis
Star Trailer chassis made of Q345 steel. Strengthened “I” section main beams are welded automatically by submerged welding machine.
Front Panel and Drop Sides
Detachable Steel front panel and Drop sides, with tarpaulin storage
place and ladder for option.

Kingpin
2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type
Brake system
Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber.
WABCO, SEALCO or equivalent brand.
Enhanced Features Options
- Lightweight design with Q700 steel "I" beam.
- Other dimensions available.
- Aluminum Tool box, Bumper, Side guard, Air tank, Wheel Rim.
- Air Suspension
- 1st axle lifting.
- Lashing rings and ripe hooks equipped for securing cargo
- Hubodometer.
- Plastic tyre blocks 2 pcs.


Parameters

ST0S03

Payload(kg)

40000

Tare weight(kg)

9500

G.V.W.R(kg)

49500

Length(mm)

12500

Width(mm)

2500

Height(mm)

1800
