MPMC group of companies

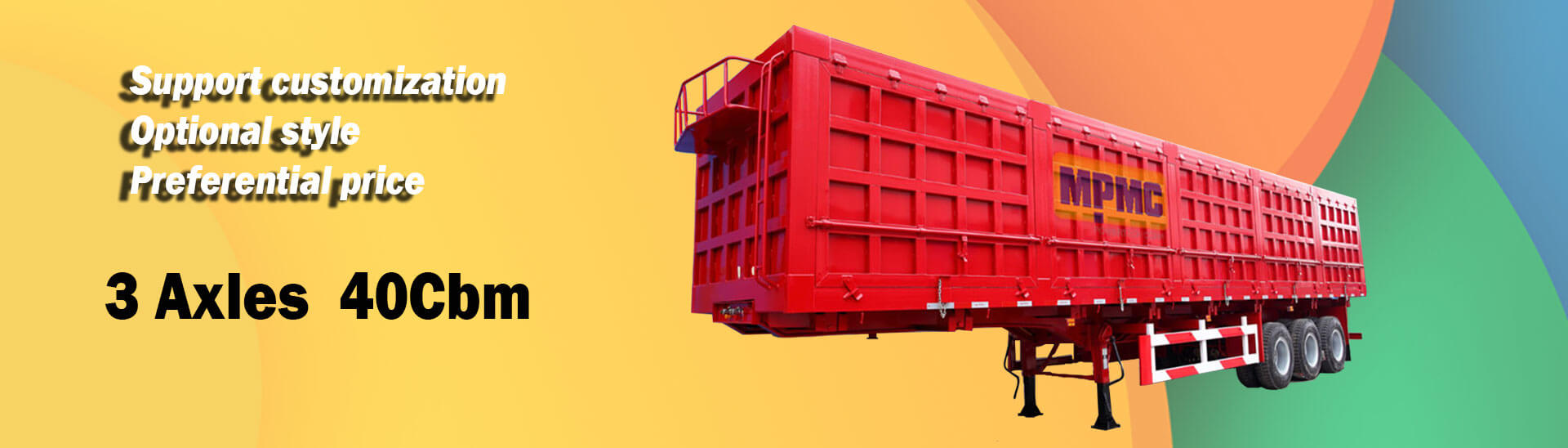

3-Axles 40cbm
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.

Technical Information
Chassis
High tensile steel with 350Mpa yield strength. Main beams are welded automatically by submerged welding machine.
Flatdeck
3mm checkered plate
Kingpin
2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type
Brake System
Dual line brake system.
WABCO, SEALCO or equivalent brand.
Lifting System
Level 5 heavy telescopic cylinder. HYVA or equivalent brand
Enhanced Features Options
-1st axle lifting
-Plastic tyre blocks 2 pcs
-Other loading capacity avaible
-Hubodometer
-Hadox, Domex Steel Body



Electric system
24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand.
Landing gear
Single side operation, 2 speeds, telescopic type.
JOST, Holland or equivalent brand.
Tyres
12 R22.5 or 385/65 R22.5 or 315/80 R22.5.
Triangle, Bridgestone, Goodyear, Continental.
Axle and suspension
13T load capacity, 150 x 150 square axle.
BPW, FUWA, JMCG.
Mechanical suspension or air suspension
Accessories
2pcs Spare wheel carries
1 pc tool box
Reflector


Parameters

ST0S03

Payload(kg)

40000

Tare weight(kg)

10000

G.V.W.R(kg)

50000

Length(mm)

13000

Width(mm)

2500

Height(mm)

2000
