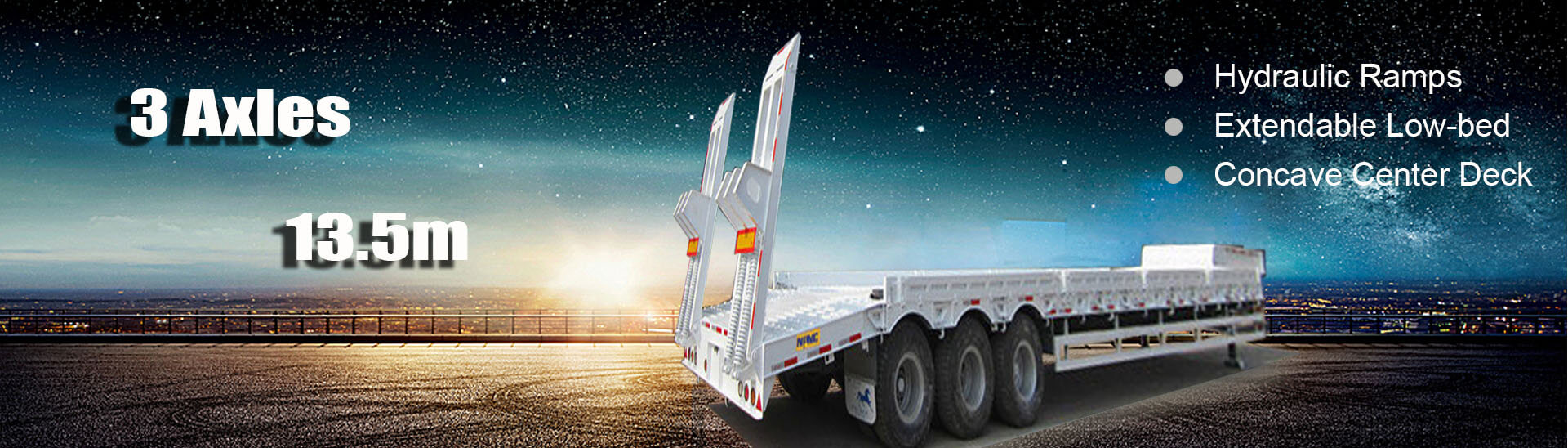

3-Axles 13.5m
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.

Technical Information
Chassis
Star Trailer chassis made of Q345 steel. Strengthened “I” section main beams are welded automatically by submerged welding machine.
Flatdeck
3mm checkered plate
Kingpin
2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type
Brake system
Double circuit brake system. The rear axle with T30/30 spring brake chamber and
the first 2 axles with T30 service brake chamber.
WABCO, SEALCO or equivalent brand.
Enhanced Features Options
- Self-steering axles.
- Hydraulic ramps
-Extendable low-bed
-Concave center deck
-Ohter dimensions available
-Special designed with hydraulic system


Electric system
24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand.
Landing gear
Single side operation, 2 speeds, telescopic type.
JOST, Holland or equivalent brand.
Tyres
12 R22.5 or 385/65 R22.5 or 315/80 R22.5.
Triangle, Bridgestone, Goodyear, Continental.
Axle and suspension
13T load capacity, 150 x 150 square axle.
BPW, FUWA, JMCG.
Mechanical suspension or air suspension
Accessories
2pcs Spare wheel carries
1 pc tool box
Reflector


Parameters

ST0S03

Payload(kg)

40,000-60,000

Tare weight(kg)

7,000-8,000

G.V.W.R(kg)

47,000-68,000

Length(mm)

13,500

Width(mm)

2,500

Height(mm)

1,250

Side wall height(mm)

Opitional
