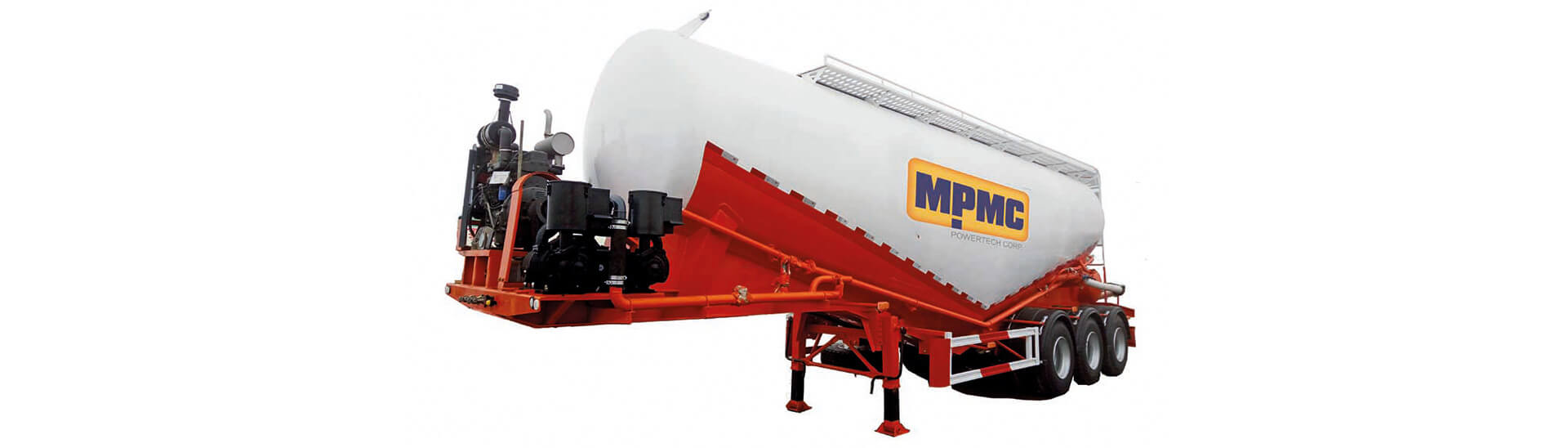

3-Axles 50Cbm
MPMC is devoted itself to become the global export on emergency solutions for mobile hybrid energy and providing more timely and more customized solutions all over the world.

Technical Information
Chassis
Star Trailer chassis made of Q345 steel or 6061 aluminium. Strengthened “I” section main beams are welded automatically by submerged welding machine.
Tank Body
Hydrostatic test to 0.3Mpa on each compartment.
Manhole Cover
Safety manhole cover with breath valve.
Diesel engine:
Weichai (Huafeng):4102P
Air compressor:
BOHAI:12m³, double cylinder
Kingpin
2" or 3,5" king pin detachable from below made by SAE standards bolted type
Brake system
Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand.
Electric system
24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand.



Landing gear
Mechanical landing gear, 2 speeds, telescopic type.
JOST, Holland or equivalent brand.
Tyres
12 R22.5 or 385/65 R22.5 or 13 R22,5 or 315/80 R22.5.
Triangle, Bridgestone, Goodyear, Continental.
Axle and suspension
13T load capacity, 150 x 150 square axle. BPW, FUWA, JMCG.
Mechanical suspension or air suspension
Enhanced Features Options
- Tank material can be carbon aluminium.
- Pneumatically automatic folding handrail
- Other volume and loading capacity available
- Air Suspension with 1st axle lifting.
- Hubodometer.
- Plastic tyre blocks 2 pcs.
- Colour per customer requirement.


Parameters

ST0S03

Volume(L)

50

Manhole(mm)

500

Payload(kg)

40000

Tare weight(kg)

10500

G.V.W.R(kg)

50500

Length(mm)

12500

Width(mm)

2500

Height(mm)

3800
